PIC Development Borad

November 4, 2013

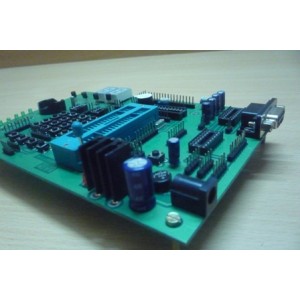

PIC Development Borad

Technical Specification

  • PIC Development Board for Microchip PIC Series (40 pin)
  • ┬áZIP Socket
  • On board Regulated Power- Optional Supply 5v,12v supplys
  • Easy to test with Burg Connecters wires
  • An RS232 Serial Port
  • 7Seg Mulitplexed Display
  • On board buzzer
  • DC Power Supply Connector(12v Ac or Dc)
  • LCD display 2linex16Character
  • 24Cxx I2C EEPROM
  • RTC DS1307
  • 8 LED array
  • Matrix Key Pad
  • 4 Intruupt Switchesr
  • Example Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC
  • Extra Adapters for 28Pin , 18Pin,14 Pin Chips ( By Order)
