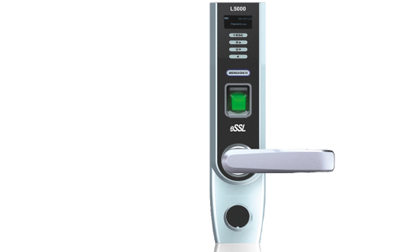

L5000 – Standalone Biometric Fingetrprint Access control with T&A

Product Description

The Fingerprint lock offers state-of-the-art single door management solution that provides you with unmatched options that comes with OLED, standard USB interface. You can verify a person and open the door with fingerprint, password and ID/Mifare cards. The All-in-one fingerprint lock is very convenient to operate. Enrollment and management of users are done on the OLED display. There are three user levels available to manage the system effectively-administrator, supervisor and user. An administrator or supervisor can do add, delete or change users very easily at the lock. The USB Port for data transmission is the main feature of the lock which makes it easy to download user Transaction from the lock-Professional and Intelligent.

Technical Specification

• Dimension(LxWxH): 315 X 78 X 88 mm
• Lead Indicator: Green & Red
• Storage
• Fingerprint Templates : 500
• Password : 100
• Event Capacity : 30,000
• Length of pAssword : 6 to 10 digit
• Cad : Proximity : 125 KHz (optional)
• Mifare : 13.56 MHz (optional)
• Front Panel Colors : Black
• Material : Zinc Alloy/Stainless steel finish
• Fingerprint Sensor: Optical Sensor 500 DPI
• Method : Fingerprint (1:1, 1:N), Password & Card
• Communication Model : USB flash disk
• Type Of Card : 13.56 MHz Mifare
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Low battery warning voltage : < 4.8 V
• Power input : 4 x 1.5V AA Battery
• Backup Unlock Mechanism : Emergency battery & Mechanical key
• Language: English
