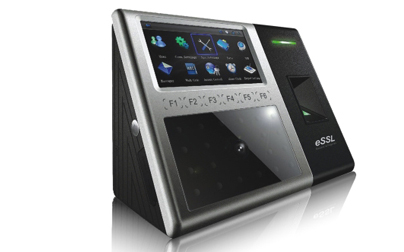

IFACE 302 – Standalone Face Time and attendance Cum Access control

Product Description

IFace 302 multi-biometric identification time attendance and access control terminal adopts latest Face 7.0 algorithm and large capacity memory. I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.

Technical Specification

• Dimension(WxHxD): 193.6 X 147.6 X 111 mm
• Face Capacity: 400 (1:N) /700(1:G) /3000(1:1)
• ID Card Capacity: 10,000
• Fingerprint Capacity:3,000
• Transaction Storage : 1,00,000
• Camera : High Resolution Infrared Camera
• Communications: RS232 ,RS485, TCP/IP
• USB-HOST: Two USB-Host
• Processor: Multi-Bio CPU 630 MHz
• Memory : 256M Flash, 64M SDRAM
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Acess Control Interface: 3rd party Electric lock, Door Sensor, Exit button
• Power Supply: 12V DC ,3A
• Access Attendance Standard Function: ID Card(302 optional) ,Automatic Status Switch
• Optional Function: Mifare Card , Short MAssage ,WebServer ,GPRS ,Batrry Back (200 mA) ,9 Digit User ,Work Code
• Wigand Signal: Output
• Alogrithm Version: Face 7.0
• Display : 4.3 Inch TFT Screen
• Gross Weight : 1.8 Kg
• Language: English
