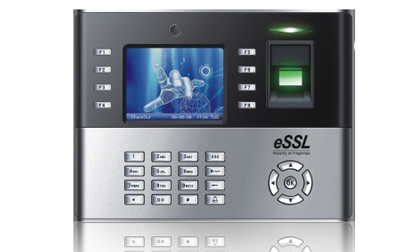

I Clock 990 – Standalone Fingerprint Time and attendance cum Access control

Product Description

I clock is a standalone fingerprint T&A + Access Control system. I CLock 990 is a high end machine with lot of features. It could be accessed from any where in the world via Webpased software. It could store 10,000 fingerprint templates and 1,00,0000 transaction records.

Technical Specification

• Dimension(WxHxD): 21.5 X 14.5 X 3.5 cm
• User Capacity:2,200
• Transaction Storage : 1,00,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Processor: 32 Bit
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Acess Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC ,400mA
• Standard Function: Work code ,DLST ,Anti-Pass Back
• Optional Function: WebServer ,WiFi ,GPRS ,CDMA
• Wigand Signal: Input & Output
• Alogrithm Version: Finger v9.0
• Dispaly: 3 Inch LCD TFT
• Language: English
