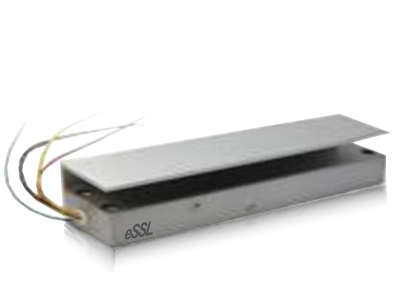

H1096AW-Glass Door EM Lock

Product Description

This is Wired Security Electric Door Lock for Frameless Glass, lock with electricity, magnetic induction, ball to fit position, low consumption, noiseless. Power to lock with signal output.

Technical Specification

• Base Size(L X W X H ): 5.83 X 1.69 X 0.98 Inch
• Body Size(L X W X H ): 5.74 X 0.96 X 1.54 Inch
• Mounting Plate(L X W X H ): 250 X 25.4 X 6.3 mm
• Bolt Size : 0.49 diameter Inch
• Lock Delay : 0 ~ 6 Seconds adjustable
• Current : starting Current 1.3 A
• Working Voltage: DC 12 V
• Red Side : Positive electrode
• Black Side : Negative electrode
• Temperature : 10°C – 55°C
• Operating Humidity : 0%-95%
