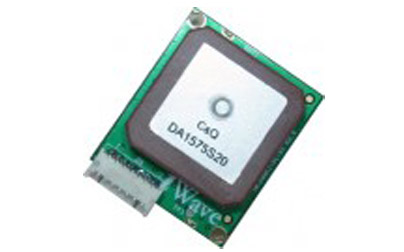

GPS MODULE (with Patch Antenna)

Technical Specification

• Processor Type: 50-MHz ARM7TDMI
• Channels: 20 channel receiver, L1 Frequency
• Protocol: NMEA
• Output Protocol message: GGA, GLL, GSA, GSV, RMC, VTG, ZDA
• Baud Rate: 4800/9600 bps
• Operating Voltage: 3.3V
• Power Consumption: 111.5mW
• Backup Power: 3V
• Antenna Interface: SMA connector or U.FL Connector
• Operating/Storage temperature: -25 deg. C to +80 deg.C/ -25 deg. C to +85 deg.C
• IO connector (6 Pin): UART Interface, 1 no GPIO, Power Supply
