VF-300 is an entry level Face recognition based Time Attendance Terminal. It supports RFID cards also.

Technical Specification

• Image sensor: special Stereo Dual Sensor
•  Display : 3 inch Touch Screen
• Face Capacity : 200 (1:N),
• ID Card Capacity: 10,000
• Logs Capacity : 100,000
• Algorithm Version : Face 7.0
• Communication: TCP/IP, USB Host
• Power supply: 12v/1.5A
• Verification Speed : <1S
• Operating temperature : 0’c ,
• Operating humidity: 20% – 80%
• Dimensions :104.70(L)*160.00(H) *36.00(D) mm

Product Description

IFace 302 multi-biometric identification time attendance and access control terminal adopts latest Face 7.0 algorithm and large capacity memory. I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.

Technical Specification

• Dimension(WxHxD): 193.6 X 147.6 X 111 mm
• Face Capacity: 400 (1:N) /700(1:G) /3000(1:1)
• ID Card Capacity: 10,000
• Fingerprint Capacity:3,000
• Transaction Storage : 1,00,000
• Camera : High Resolution Infrared Camera
• Communications: RS232 ,RS485, TCP/IP
• USB-HOST: Two USB-Host
• Processor: Multi-Bio CPU 630 MHz
• Memory : 256M Flash, 64M SDRAM
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Acess Control Interface: 3rd party Electric lock, Door Sensor, Exit button
• Power Supply: 12V DC ,3A
• Access Attendance Standard Function: ID Card(302 optional) ,Automatic Status Switch
• Optional Function: Mifare Card , Short MAssage ,WebServer ,GPRS ,Batrry Back (200 mA) ,9 Digit User ,Work Code
• Wigand Signal: Output
• Alogrithm Version: Face 7.0
• Display : 4.3 Inch TFT Screen
• Gross Weight : 1.8 Kg
• Language: English

Product Description

IFace 202 multi-biometric identification time attendance and access control terminal adopts latest Face 7.0 algorithm and large capacity memory. I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure

Technical Specification

• Dimension(WxHxD): 193.6 X 147.6 X 101 mm
• Face Capacity: 400 (1:N) /700(1:G) /3000(1:1)
• Fingerprint Capacity: 2000
• ID Card Capacity: 10,000
• Transaction Storage : 1,00,000
• Camera : High Resolution Infrared Camera
• Communications: RS232 ,RS485, TCP/IP
• USB-HOST: Two USB-Host
• Processor: Multi-Bio CPU 630 MHz
• Hardware Platfor : 600 Multi-Medium Development Platfrom
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Fingerprint Sensor: Optical Fingerprint Sensor without film
• Acess Control Interface: 3rd party Electric lock, Door Sensor, Exit button
• Power Supply: 12V DC ,3A
• Access Attendance Standard Function: ID Card ,Automatic Status Switch ,Self-Service ,T9 Input
• Optional Function: Mifare Card ,Short MAssage ,WebServer ,GPRS ,Batrry Back (200 mA) ,Work Code ,DLST ,9 Digit User
• Wigand Signal: Output
• Alogrithm Version: Face 7.0
• Display : 4.3 Inch TFT Screen
• Gross Weight : 1.8 Kg
• Language: English

Product Description

IFace 101 multi-biometric identification time attendance terminal adopts latest Face 7.0 algorithm and large capacity memory .I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 2.0 inches TFT screen with keypad operation. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure

Technical Specification

• Dimension(WxHxD): 193.6 X 147.6 X 101 cm
• Face Capacity: 400 (1:N) /700(1:G) ,1500/3000(1:1) optional
• ID Card Capacity: 10,000
• Transaction Storage : 1,00,000
• Camera : High Resolution Infrared Camera
• Communications: RS232 ,RS485, TCP/IP ,USB
• Processor: Multi-Bio CPU 630 MHz
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Power Supply: 12V DC ,3A
• Optional Function: Mifare Card ,Short MAssage ,WebServer ,WiFi ,GPRS ,9 Digit User ,Work Code
• Alogrithm Version: Face 7.0
• Display : 2.0 Inch TFT Screen
• Gross Weight : 1.5 Kg
• Language: English

Product Description

SC203 is a RFID  Time and Attendance Systems, with Access Control. Its a  low priced device with good performance, designed especially in the purpose of popularizing the fingerprint products. It could store 30000 cards and 50000 transaction records.

Technical Specification

• Dimension(WxHxD): 19.0 X 14.5 X 3.5 cm
• User Capacity: 30,000
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Power Supply: 12V 2Amp
• Wiegand Signal : Output & Input
• Standard Function: Anti-PassBack
• Access Control Interface : 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Optional Function: Mifare , HID ,Work Code ,Webserver
• Dispaly: LCD Screen
• Gross Weight : 0.8 Kg
• Language: English

Product Description

S300 is a RFID Time and Attendance System. Its a  low priced device with good performance, designed especially in the purpose of popularizing the fingerprint products. It could store 30,000 cards and 50,000 transaction records.

Technical Specification

• Dimension(LxWxD): 19.0 X 13.6 X 3.6 cm
• User Capacity: 30,000
• Transaction Storage :50,000
• Processor: 32 Bit
• Sensor: OEM Optical Sensor 500 DPI
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Power Supply: 5V DC 2A
• Standard Function:5 Digit user ID
• Optional Function: Work Code ,USB Host ,9 Digit User ID
• Dispaly: Black & White LCD Screen
• Language: English

Product Description

K300 is a RFID Time and Attendance Systems which could store 30,000 cards and 50,000 transaction records. I

Technical Specification

• Dimension(WxHxD): 19.0 X 13.6 X 3.6 cm
• User Capacity: 30,000
• Transaction Storage :50,000
• Processor : 32 Bit
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Power Supply: 5V DC 2A
• Standard Function: 5 Digit user ID
• Optional Function: Work Code ,USB Host ,9 Digit User ID
• Dispaly: Black & White LCD Screen
• Language: English

Product Description

I clock is a standalone fingerprint T&A + Access Control system. I CLock 990 is a high end machine with lot of features. It could be accessed from any where in the world via Webpased software. It could store 10,000 fingerprint templates and 1,00,0000 transaction records.

Technical Specification

• Dimension(WxHxD): 21.5 X 14.5 X 3.5 cm
• User Capacity:2,200
• Transaction Storage : 1,00,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Processor: 32 Bit
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Acess Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC ,400mA
• Standard Function: Work code ,DLST ,Anti-Pass Back
• Optional Function: WebServer ,WiFi ,GPRS ,CDMA
• Wigand Signal: Input & Output
• Alogrithm Version: Finger v9.0
• Dispaly: 3 Inch LCD TFT
• Language: English

Product Description

FBAC 9090 is a standalone fingerprint T&A + Access Control system. It could store 2,200 fingerprint templates and 50,000 transaction records.

Technical Specification

• Dimension(WxHxD): 90 X 190 X 39.5 mm
• User Capacity:2,200
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Acess Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC
• Standard Function: 9 digit user ID
• Wigand Signal: Output
• Alogrithm Version: Finger v9.0
• Dispaly: Black & White LCD Screen
• Gross Weight: 0.7 Kg
• Language: English

Product Description

FBAC 0909 is a standalone fingerprint T&A + Access Control system. It could store 2,200 fingerprint templates and 50,000 transaction records.

Technical Specification

• Dimension(WxHxD): 90 X 190 X 39.5 mm
• User Capacity:2,200
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Access Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC
• Standard Function: 9 digit user ID
• Wigand Signal: Output
• Alogrithm Version: Finger v9.0
• Dispaly: Black & White LCD Screen
• Gross Weight: 0.7 Kg
• Language: English

Product Description

FT0099 is an innovative biometric fingerprint reader for time attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The T6-C features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optica fingerprint sensor. The 3 Inch TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.

Technical Specification

• Dimension(WxHxD): 184.3 X 130 X 48 mm
• User Capacity:3,000
• Transaction Storage :1,00,000
• Processor: 32 Bit
• Communications: RS232 ,RS485, TCP/IP ,USB
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare(Optional)
• Power Supply: 5V DC 2A
• Standard Function:9 digit user ID (optional) ,DLST ,Work Code (optional)
• Display: 3 Inch TFT Screen
• Alogrithm Version: 9.0/10.0
• Language: English

Product Description

H3 is a standalone fingerprint T&A System, IN and OUT status, also low price with good performance, designed specially in the purpose of popularizing the fingerprint products. It could store 1500 fingerprint templates and 30000 transaction records. It will bring you much profits because of its low price.

Technical Specification

• Size: 18.3 X 13.9 X 5.4 cm
• User Capacity:1500
• Transaction Storage :50000
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Language: English

Product Description

SC403 is a RFID Time and Attendance Systems, IN and OUT status, also low price with good performance, designed especially in the purpose of popularizing the fingerprint products. It could store 30,000 cards and 50,000 transaction records. It will bring you much profits because of its low price.

Technical Specification

• Dimension(WxHxD): 19.0 X 13.5 X 3.6 cm
• User Capacity: 30,000
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP ,USB-Host
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Power Supply: 12V 2A
• Wiegand Signal : Output & Input
• Standard Function: Anti-PassBack
• Optional Function: Mifare , HID ,Work Code ,Webserver
• Dispaly :  LCD Screen
• Gross Weight : 0.8 Kg
• Language: English

Product Description

FBAC 2727is a standalone fingerprint T&A + Access Control system. It could store 2,200 fingerprint templates and 50,000 transaction records.

Technical Specification

• Dimension(WxHxD): 90 X 190 X 39.5 mm
• User Capacity:2,200
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Access Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC
• Standard Function: Work code ,DLST
• Optional Function: 9 Digit User ID
• Wigand Signal: Output
• Alogrithm Version: Finger v9.0
• Dispaly: Black & White LCD Screen
• Gross Weight: 0.7 Kg
• Language: English

Product Description

X990 is a standalone fingerprint T&A + Access Control system with IN and OUT status. It could store 3,000 fingerprint templates and 1,00,0000 transaction records. It could be used for door control purposes. Can connect exit Fingerprint/ RF Card reader via Wiegand port. It is having multiple alarm clock options.

Technical Specification

• Dimension(WxHxD): 21.5 X 14.5 X 3.5 cm
• User Capacity:3,000
• Transaction Storage : 1,00,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Processor: 32 Bit
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare(optional) ,HID (optional)
• Acess Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC ,400mA
• Standard Function: Work code ,DLST ,Anti-Pass Back
• Optional Function: WebServer ,WiFi ,GPRS ,CDMA ,Battery Backup
• Wigand Signal: Input & Output
• Alogrithm Version: Finger v9.0/10.0
• Dispaly: 3 Inch LCD TFT
• Language: English

Product Description

F8 is a standalone fingerprint T&A + Access Control system with a strong enclosure. It could store 2,200 fingerprint templates and 50,000 transaction records.

Technical Specification

• Dimension(WxHxD): 100 X 196 X 53.5 mm
• User Capacity:2,200
• Transaction Storage :50,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare ,HID (optional)
• Access Control Interface: 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Power Supply: 12V DC
• Standard Function: Work code ,DLST ,9 digit user ID
• Wigand Signal: Input & Output
• Alogrithm Version: Finger v9.0
• Dispaly: Black & White LCD Screen
• Gross Weight: 1.10 Kg
• Language: English

Product Description

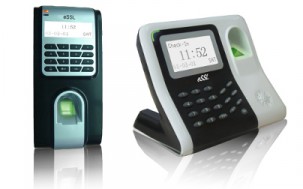

S20 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed with feather touch keypad. The FTAS20 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The 3 Inch TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.

Technical Specification

• Dimension(WxHxD): 196.5 X 130.5 X 59 mm
• User Capacity:3000
• Transaction Storage :1,00,000
• Communications: RS232 ,RS485, TCP/IP ,USB
• Identification time : < =2S
• FAR: <=0.0001%
• FRR: <=1% Operating
• Temperature : 0°C – 45°C
• Operating Humidity : 20%-80%
• Sensor: OEM Optical Sensor 500 DPI
• Card reader: EM RFID(Proximity), Mifare ,HID(Optional)
• Power Supply: 5V DC 2A
• Standard Function: Work code (Optional) ,DLST ,9 digit user ID (Optional) ,Web-server(optional)
• Alogrithm Version: Finger v9.0/10.0
• Dispaly: 3 Inch TFT Screen
• Gross Weight: 1.05 Kg
• Alogrithm Version: 9.0/10.0
• Language: English
